Roof Sheathing Thickness: What Code and Mountain Roofs Need

The minimum roof sheathing thickness in the model residential code is 3/8 inch for rafters 16 inches on center and 7/16 inch for 24-inch spacing, but those are floors, not recommendations. Most houses end up with 1/2-inch (15/32 actual) plywood or 7/16 to 19/32 OSB, and roofers who work in the mountains often go thicker. Thickness alone does not decide it. The panel's span rating, your framing spacing, your wind and snow loads and the roof covering's installation rules all do.

This guide covers what the code says, what the roofing industry's own trade association recommends, how plywood and OSB differ, and what we do on mountain homes in Franklin, Highlands, Cashiers and Sylva.

Key Takeaways

• Code minimums: 3/8 inch at 16-inch spacing and 7/16 inch at 24-inch spacing, provided the panel carries the matching span rating.
• The roofing trade association NRCA recommends 1/2 inch at 16 inches and 5/8 inch at 24 inches, plus plywood over OSB on steep-slope roofs.
• 15/32-inch plywood is the usual "1/2-inch" panel and is accepted where a 1/2-inch minimum is specified, with the right underlayment.
• Match the stamped span rating to your rafter or truss spacing, then check the shingle or metal manufacturer's requirements. The strictest rule wins.
• On exposed, high-elevation roofs, go thicker and nail tighter at the edges and corners.

Roof Sheathing Thickness at a Glance

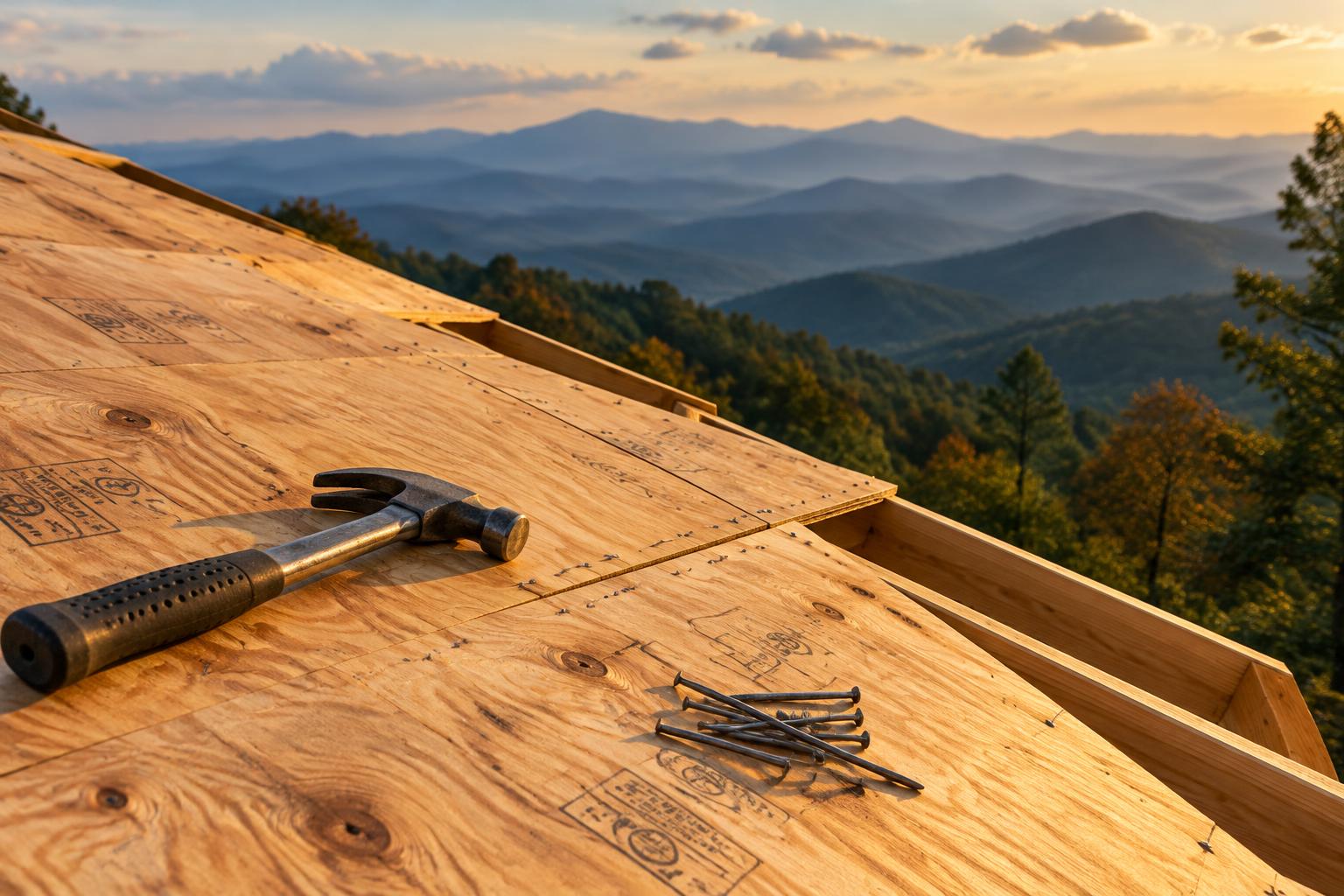

Sheathing (also called decking) is the layer of panels nailed over the rafters or trusses. Everything else, underlayment, shingles or metal, rides on it, and it has to hold a person on a ladder, a foot of wet snow and a wind gust at the same time.

The code figures come from the IRC section R803 summary, which ties them to a 24/16 or greater span rating at 16 inches and a 24/24 rating at 24 inches. The NRCA numbers are from its steep-slope guidance.

The gap between the two columns is the honest answer to "what thickness do I need." The code tells you the least you can legally get away with on a typical house. The trade tells you what holds up over decades. Thin panels can pass inspection and still show telegraphing, sag between rafters and nail pops a few years later.

Why Thickness Is Only Half the Question: Span Rating

Every structural panel carries a grade stamp with two numbers, such as 32/16 or 24/16. The first number is the maximum support spacing, in inches, when used on a roof. The second is the same for a floor. A 32/16 panel can span 32 inches on a roof and 16 inches on a floor.

That is why two panels of similar thickness are not interchangeable. Before you buy or approve a quote, check:

• The span rating on the stamp, against your actual rafter or truss spacing
• The panel grade and bond classification. APA Rated Sheathing is made as plywood or OSB, and its bond classification is typically Exposure 1
• The design loads for your area, since high wind, heavy snow and engineered plans can require more than the prescriptive minimums
• Panel orientation: the strong axis runs perpendicular to the rafters, and end joints are staggered and spaced as required

Design guidance from APA also limits how much a roof panel may flex: maximum deflection of L/240 under live loads. A bouncy deck usually means a thin panel on a wide span, and the shingles above it will pay for it.

If you are comparing the span-rating logic to other decking choices, remember that solid lumber boards follow a different table. In the North Carolina residential code, lumber sheathing at 24-inch spacing needs a 5/8-inch minimum net thickness, which is common on older homes with plank decks.

Common Panel Thicknesses, and Which One Fits

3/8 inch

The code floor for 16-inch spacing. We would not choose it for a new roof in the mountains. It leaves little holding power for nails and little stiffness.

7/16 inch OSB

A common, code-compliant choice. 7/16-inch OSB is suitable for roof decking at 16 or 24 inches on center when it has the span rating for those supports, according to the FORTIFIED Home standard, which actually requires 7/16-inch nominal thickness at 24-inch spacing for its Gold designation. Still confirm the local code and the roofing manufacturer's warranty terms.

15/32 inch plywood (sold as 1/2 inch)

This is the real thickness of most "1/2-inch" plywood. Where installation instructions call for 1/2-inch-minimum plywood, 15/32-inch plywood is a suitable alternative when certified underlayment is used between the sheathing and the roof covering. So yes, 15/32 works for roof sheathing, and it is the workhorse for 16-inch framing.

19/32 inch (5/8 inch) and thicker

This is the NRCA's recommendation for 24-inch spacing, and it is what we lean toward on wide-spaced framing, long exposed rafters and roofs that will take heavy snow. It costs more per sheet, but on a typical roof the added material is a small share of a total replacement.

Plywood vs. OSB for Roof Sheathing

Both are code-approved and both are made to the same performance standards. The difference shows up when the panels get wet and dry repeatedly.

The NRCA position is clear: it no longer recommends OSB as a substrate for steep-slope roofing, citing dimensional change, ridging and fastener backout when moisture conditions change. It recommends plywood that meets PS 1 instead. For reroofing over an existing OSB deck, it suggests designers consider replacing the OSB with plywood, or installing plywood over OSB panels that are in good condition.

Cost is the usual reason OSB gets chosen, and many builders use it successfully. But in Western North Carolina, where roofs see fog, near-daily moisture swings and long wet seasons, we see little reason to save a modest amount on the one layer you cannot inspect after the shingles go on. For a wider look at how moisture and altitude affect material choices, see our high-elevation building materials guide.

Perspective: How We Choose Sheathing on Mountain Roofs

We tear off a lot of roofs, which means we see what the deck looked like after 15 or 20 years under the old covering. A few patterns come up again and again.

First, the deck tells you whether the roof was built for its site. A house at 3,500 feet with a ridge exposed to westerly wind is not the same job as a sheltered valley home, even if both have 24-inch trusses. We treat the code minimum as a starting point and size up when the exposure, the roof pitch or the covering calls for it.

Second, the deck is where a replacement either becomes a long-term fix or a short-term cover-up. When we open a roof and find soft, delaminated or swollen panels, we replace them, not shingle over them. A new roof nailed to a damaged deck inherits every problem under it. That is why our written estimates include a line for decking repair, so you see how deck replacement is handled before work starts instead of discovering it in a change order.

Third, we read the manufacturer's installation instructions, not just the code. We hold certifications with CertainTeed, and their requirements for the deck are part of what we build to.

Our advice: ask any contractor what panel, what thickness and what span rating they plan to use, and ask them to write it on the estimate.

Nailing: The Part That Makes the Thickness Matter

A thick panel poorly nailed is a weak deck. The standard schedule uses 8d common nails, 0.131 inch in diameter and 2-1/2 inches long, spaced 6 inches on center at supported panel edges and 12 inches on center at intermediate supports.

Wind changes that. Uplift pressure is not even across a roof, and the NRCA notes that corners and perimeters, called Zones 2 and 3, call for tighter fastening than the field. On a ridgeline home in Highlands or Cashiers, those edge zones are where shingles and decking tend to fail first in a storm. Ask whether your crew nails to the tighter edge schedule, and whether they hit the rafters every time instead of the gaps between.

If you are interested in what a storm-rated roof system looks like, the FORTIFIED Home standard lays out deck requirements and documents thickness by performance category, which makes it a useful checklist even if you do not pursue the designation.

Sheathing Under a Metal Roof, and What 24 vs. 26 Gauge Means

Metal roofs add a second thickness question. Roof panels are rated by gauge, and a lower number means thicker steel. Typical values are 0.024 inch for 24 gauge and 0.018 inch for 26 gauge. Suppliers describe 24 gauge as the common choice for standing seam because the extra thickness helps resist oil canning on long runs and handles hail better than 26 gauge.

Two points matter for the deck:

• Gauge is the metal, not the sheathing. A heavier panel does not let you use a thinner deck. Metal systems still need a solid, flat substrate, and standing seam in particular shows every dip and ridge in the deck below. Plywood is the safer choice here.
• Screw-down panels need a deck that holds fasteners firmly through temperature swings. Soft or swollen panels lead to backed-out screws and leaks at the fasteners.

If you are weighing 24 gauge against 26 gauge, think about the run length, the wind exposure and the profile. Standing seam, exposed-fastener panels and stamped metal shingles each have different needs. We break down those choices and what they typically involve on our metal roofing cost page and our standing seam metal roofing page.

Re-Roofing: Reuse the Deck or Replace It?

You do not automatically need new sheathing with a new roof. You do need a sound deck. During tear-off we look for:

• Soft spots or panels that flex underfoot
• Dark staining, delamination or swollen OSB edges
• Widely spaced or missing nails, and old nail holes that no longer grip
• Panels that are thinner than the new covering's instructions allow
• Rot around chimneys, skylights, valleys and eaves, where water collects first

Where the old deck is thin but sound, one option the NRCA raises for OSB is installing plywood over it. Where it is damaged, replace the panels. If the deck is open anyway, it is also the moment to consider ventilation and insulation improvements.

For a closer look at how we approach tear-off, decking and the full job, see our page on roof replacement for mountain homes. If you only have a leak, flashing issue or storm damage, roof repair is usually the right starting point.

How to Check What Is on Your Roof Now

You can learn a lot without climbing up:

• Attic view. Look at the underside of the deck. Panel stamps are sometimes visible, and you can see staining, sagging between rafters or rusted nail tips.
• Measure the framing. Measure rafter or truss spacing center to center. It is almost always 16 or 24 inches.
• Check the plans. Original drawings or permit records often list the panel and thickness.
• Ask for it in writing. Any reputable estimate should name the sheathing type, thickness and span rating if decking is replaced.

Never walk on a roof you suspect is soft. A roof that seems fine from the ground can fail underfoot, so have a contractor inspect it.

Work with a Crew That Puts the Deck in Writing

At Highlander Building Services, our roofing estimates are written and detailed, and you get a single point of contact. We build for Western North Carolina conditions: elevation, wind exposure and moisture. If you want a roof in Franklin, Highlands, Cashiers, Sylva or the surrounding mountains inspected, with a clear scope for the deck and the covering, start with our roofing services page or contact us through our site.

Sources

• IRC 2024 roof deck sheathing: thickness by spacing
• IRC 2021 roof sheathing and span rating
• NRCA steep-slope roofing guidance
• NRCA guidance on attaching plywood and OSB sheathing
• IBHS 2025 FORTIFIED Home Standard
• UL roof ratings, 15/32 plywood alternative
• APA Rated Sheathing data sheet
• APA wood structural panel design handout
• North Carolina Residential Code, Chapter 8
